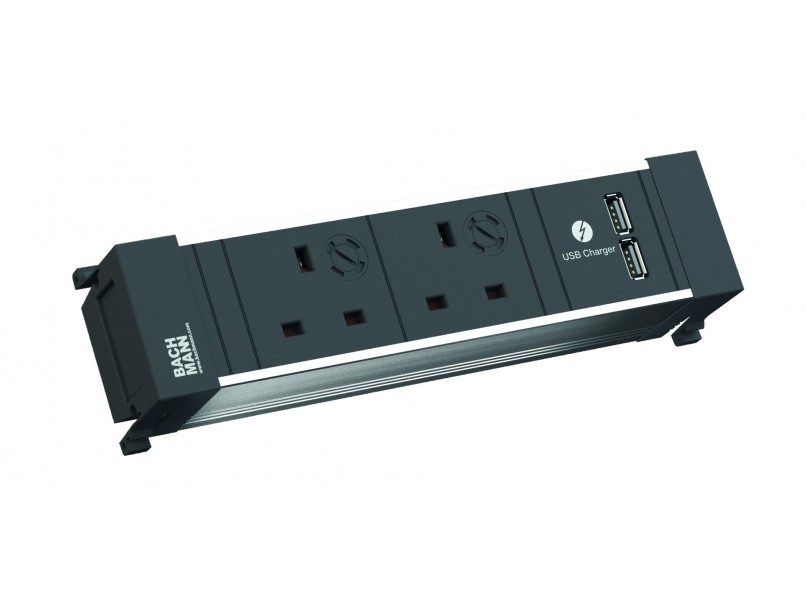

POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. It can be either factory-installed or supplied for retrofitting. The power strip clicks into the mounting frame and can be interchanged or fitted with custom modules as required.
2 x 3-pin power outlets and 2 x Smart USB charging outlets.
Power strip is clicked into place in the mounting frame from underneath without tools.
- Compact dimensions
- Suitable for retrofitting
- Timeless design
- Versatile in application
- Rapid installation of complete power strips
Colour of Socket: Black
The power socket distribution unit is slim and compact with a mount that can support it's own. The support is made out of Aluminium and is secured by high impact end cap assemblies. The power main plug comprises of a 13A fused and detachable cable to power distribution socket unit with pin connectors with a maximum operating power rating of 300W and 16A operated at 230V, 50HZ. The power outlet is a type "G" three pin plug and the distribution unit is protected with a fuse. The USB smart charger is compatible with Type A and Type C charging cables, with the output power of 5VDC and a 3.1A maximum input power of 240VAC 100mA.
- 241mm x 73mm x 36mm, Mounting depth: Mounting frame - 34mm, Mounting frame incl. power strip + retaining bracket: 50mm, Thickness of tabletop – min. 10mm, Corner radius - R5
- Mounting Frame: Sheet steel, Aluminium and Plastic Socket
- Power Module
- 2 x Power Point (UK Type G)
- USB Module
- 1 x Dual USB Charger 3.1A
- Socket colour
- Silver and black
